Top Hammer Drill Rigs

ECD35E

Engine: Tier 1 Cummins 6BT5.9 (160hp) Drifter: ED150 (15kW) Compressor: 5.4m3/min (190CFM) @ 10.5 bar Rod Changing: Rod rack (5+1) Hole Diameter: 51~89mm (2”~3.5”)

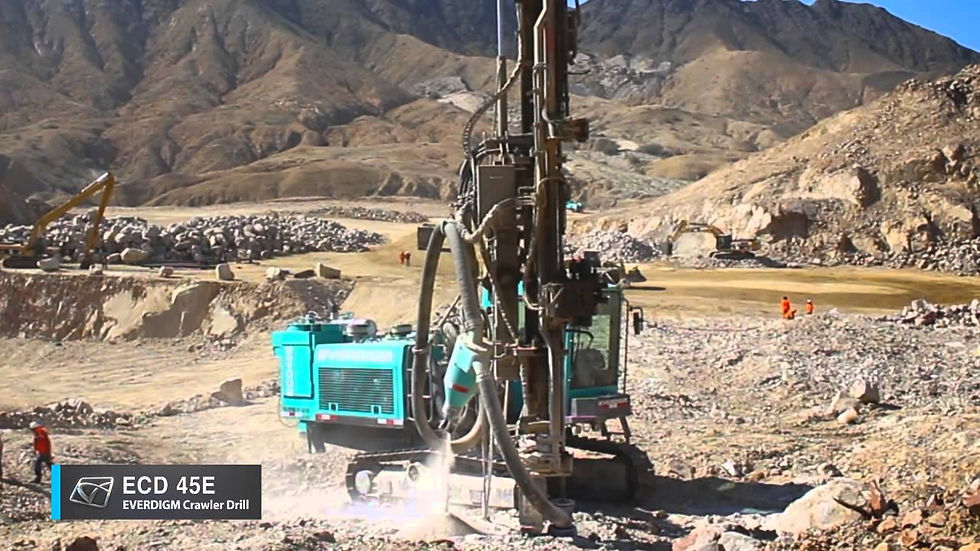

ECD45E

Engine: Cat C7.1 Tier 3 (225hp) Drifter: EHD 210 (21kW), EVERDIGM Compressor: 283CFM(8㎥/min) at 10.5 bar Rod Changing: Carousel Type Hole Diameter: 76~115mm (3”~4.5”)

ECD50E

Down The Hole Drill Rig (DTH)

SR175B

Engine - ISM N844T (57 Hp) Operating weight - 6,200 lb / 2.812 kg Max Dump Height - 7'10" (2.4m) Load Capacity - 1,750 lb / 790 kg Hyd. Flow - 19 gpm / 72 L/min

SR250B

Engine - Case 432T (84 Hp) Operating weight - 3,630 kg / 8.000 lb Max Dump Height - 8'2" (2.5m) Load Capacity - 1,135 kg / 2.500 lbs Hyd. Flow - 85 L/min / 22,5 gpm

SV300B

Engine - Case 432T (84 Hp) Operating weight - 3,765 kg / 8,300 lb Max Dump Height - 8'1" (2.47m) Load Capacity - 1,361 kg / 3,000 lb Hyd. Flow 85 L/min - 22.5 gpm

Compact Track Loader (CTL)

TR270B

Engine - FPT F5C 5454G (74 Hp) Operating weight - 8,267 lb / 3,750 kg Max Dump Height - 7'10" (2.4m) Load Capacity - 5,400 lb / 2449 kg Hyd. Flow - 22.4 gpm / 85 L/min

TR320B

Engine - FPT F5C 5454C (90 Hp) Operating weight - 9,557 lb / 4,335 kg Max Dump Height - 8'0" (2.45m) Load Capacity - 6,397 lb / 2902 kg Hyd. Flow - 22.4 gpm / 85 L/min

TV380B

Engine - FPT F5C 5454C (90 Hp) Operating weight - 10,196 lb / 4,675 kg Max Dump Height - 8'2" (2.5m) Load Capacity - 7,600 lb / 3447 kg Hyd. Flow - 22.4 gpm / 85 L/min
